Giunto sferico dx / sx AF-148.6126.4

Maggiori info

IVA esclusa

Per informazioni inviare richiesta con Whatsapp 366 973 2271 o via E-Mail: ricambi@agroforestale.it specificando il codice del prodotto

COD: AF-148.6126.4 Categorie: ,

Descrizione prodotto

Codice: AF-148.6126.4

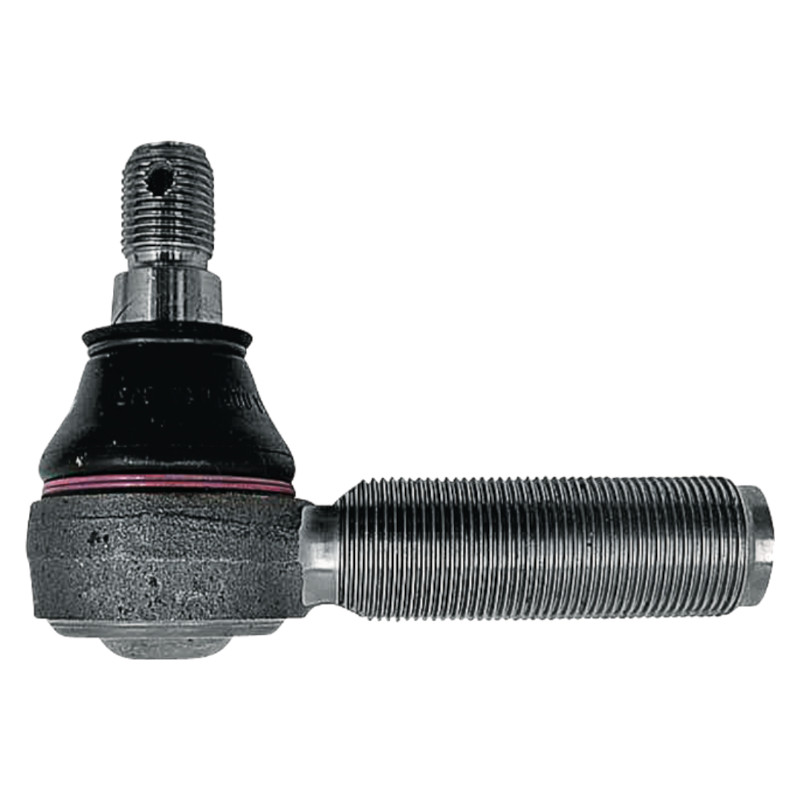

Giunto sferico destra / sinistra

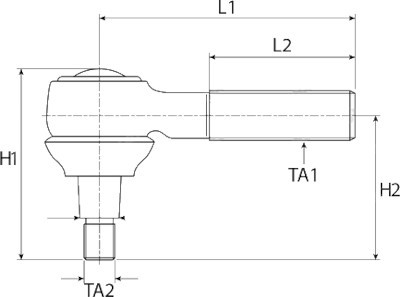

Informazioni:



Tipo di filettatura: metrico
Filettatura – TA1: M24 x 1,5 RH
Filettatura – TA2: M16 x 1,5 RH

Cono: 18 – 20 (mm.)

L1: 105 (mm.)
L2: 72 (mm.)
H1: 92 (mm.)
H2: 75 (mm.)



Compatibile con:



Case-IH:

44: 844, 844S, 844XL
45: 845
46: 946, 1046, 1246
55: 955, 1055, 1255, 1255XL
56: 856, 956, 1056



Deutz:

05: 2505, 3005, 4005, 4505, 5005, 5505, 7505, 7505F, 7505U, 9005, 9005F, 9005U
06: 10006, 10006F, 10006U, 13006, 16006, 2506, 3006, 3006F, 4006, 4006F/S, 4006U, 4506, 4506F, 4506US, 5006, 5006F, 5006U, 5206, 5206F, 5206U, 5506, 5506F, 5506U, 6006, 6006F, 6006U, 6206, 6206F, 6206U, 6806, 6806F, 6806U, 7006, 7006F, 7006U, 7206, 7206A, 7206F, 7206U, 7506, 7506F, 7506U, 8006, 8006F, 8006U, 9006, 9006A, 9006F, 9006U
07: 2807, 3607, 3607F, 4007, 4007F, 4007U, 4507, 4507A, 4507F, 4807, 4807A, 4807F, 5207, 5207A, 5207F, 6007, 6007A, 6007F, 6207, 6207A, 6207F, 6507, 6507A, 6507F, 6807, 6807A, 6907, 7007, 7007A, 7207, 7207A, 7807, 7807A
5: 5100, 5100 P, 5110, 5110 P, 5120,5120 P
Agrofarm: 85, 85 Ecoline, 100, 100 Ecoline
Agrofarm COM3: 410, 410G, 420, 420 Profiline, 420TTV, 430, 430 Profiline, 430G, 430TTV
Agrofarm T-TB COM3: 410T, 410T Ecoline, 410TB, 420T, 420T Ecoline, 420TB
Agrolux: 100, 4.75, 4.75E, 4.80, 50E, 57, 60, 60E, 65, 67, 70, 70E, 75, 77, 77LP, 80, 85, 87, 87LP, 90, 95, 97, 97LP
Agrolux COM3: 310, 320, 320P, 410
Agrolux F: F50, F57, F60, F67, F70, F80
Agrolux India Euro 1: 50 E, 60 E Euro 1, 70 E Euro 1
Agrolux India TREM III A: 50 E TREM III A, 55 E TREM III A, 60 E TREM III A, 70 E TREM III A, 75 Profiline TREM III, 80 Profiline TREM III
Agromaxx: 55, 60
Agroplus: 100, 60, 67, 70, 75, 77, 80, 85, 87, 95, 95 New
Agroplus COM3: 310, 310 Ecoline, 315, 315 Ecoline, 320, 320 Ecoline, 410, 410 Ecoline, 420 Profiline
Agroplus F: 430F COM3, F100, F70, F75, F90
Agroplus F COM3: 320F, 410F, 420F
Agroplus F Ecoline: 310F Ecoline, 315F Ecoline, 320F Ecoline, 405F Ecoline, 410F Ecoline, 420F Ecoline
Agrotrac: 100, 110
C: 4507C, 4807C, 5207C, 6007C, 6207C, 6507C, 6807C, 6907C, 7007C, 7207C, 7807C
D: 40, 50
DX: DX80, DX80A



Fiat:

1000: 1180, 1180DT, 1280, 1280DT, 1380, 1380DT, 1580, 1580DT, 1880, 1880DT
Someca: 1000, 1000 Super, 1000DT, 1000N, 1000S, 1300, 1300DT, 40, 45, 50, 511, 55, 615, 650, 715, 750, 800, 850, 850 (Special), 880, 880/4, 900



Hurlimann:

Joker: 50E, 60, 60E, 70E, 75.4, 75.4E, 80.4, 80.4E
Joker COM3: 65, 75
Prestige: 75 Tradition, 95 Tradition
XA: XA56, XA655, XA656T, XA657, XA658, XA66, XA76, XA86
XA COM3: XA100 Hi-Level, XA60, XA70, XA80, XA90
XA Tradition: XA56 Tradition, XA66 Tradition, XA76 Tradition, XA86 Tradition
XA Tradition COM3: XA60 Tradition, XA70 Tradition, XA80 Tradition, XA90 Tradition
XB: XB105, XB75T, XB75TB, XB85, XB85T, XB85TB, XB90, XB95, XB95T, XB95TB
XB Max: XB Max 100, XB Max 100 Tradition, XB Max 85, XB Max 85 Tradition
XB Max COM3: XB Max 100, XB Max 110, XB Max 85
XB T-TB COM3: XB100T, XB100TB, XB105T Tradition, XB85T, XB85TB, XB90T Tradition
XE: H355F-XE, H365F-XE, H375F-XE
XE COM3: XE65, XE75, XE80
XE Tradition: XE F 55, XE F 70, XE55, XE70
XF: H100 XF, H361 XF, H476 XF, H481 XF, H491 XF, H55 XF, H70 XF, H75 XF, H90 XF, XF100, XF55, XF70, XF75, XF90
XF COM3: XF100, XF110, XF80, XF90
XF Tradition: XF100 Tradition, XF60 Tradition, XF70 Tradition, XF80 Tradition, XF80.4 Tradition, XF90 Tradition
XM T4i: XM 100 T4i, XM 100 T4i Hi-Level, XM 110 T4i, XM 110 T4i Hi-Level, XM 120 T4i, XM 120 T4i Hi-Level
XT: XT105, XT110, XT85, XT95
XT COM3: XT 100 V-drive, XT 110 V-drive, XT100, XT110



Lamborghini:

Crono: 554-55, 564-65, 574-75
Crono COM3: 65, 75, 75P, 80
Crono Target: 55 Target, 70 Target, F55 Target, F70 Target
F Plus: 100 F Plus, 55 F Plus, 660-F Plus, 70 F Plus, 75 F Plus, 775-F Plus, 880-F Plus, 90 F Plus, 990-F Plus
Grand Prix: 75 Target, 95 Target
High Clearance: High Clearance 90
Lampo: Lampo 55W, Lampo 70W
N-Cross: 674-75, 774-80, 774-85, 874-95
Nitro T4i: Nitro 100 T4i, Nitro 100 T4i Hi-Profile, Nitro 110 T4i, Nitro 110 T4i Hi-Profile, Nitro 120 T4i, Nitro 120 T4i Hi-Profile
R: 1106
R2: R2.56, R2.56 Target, R2.66, R2.66 Target, R2.76, R2.76 Target, R2.86, R2.86 Target
R2 COM3: R2.100 Hi-Profile, R2.60, R2.60 Target, R2.70, R2.70 Target, R2.80, R2.80 Target, R2.90, R2.90 Target
R3: R3.100, R3.75, R3.80, R3.85, R3.85T, R3.85TB, R3.90, R3.90 Trend, R3.95
R3 Evo: R3 Evo 100, R3 Evo 85
R3 Evo COM3: R3 Evo 100, R3 Evo 110, R3 Evo 85
R3 T-TB COM3: R3.100T, R3.100TB, R3.105T, R3.105T Target, R3.75T, R3.75TB, R3.85T, R3.85TB, R3.90T, R3.90T Target, R3.95T, R3.95TB
R4: R4.105, R4.110, R4.85, R4.95
R4 COM3: R4.100, R4.100 VRT, R4.110, R4.110 VRT
R5: R5.100, R5.110
RF: RF 55, RF 70, RF 75, RF 90, RF100
RF COM3: RF100, RF110, RF80, RF90
RF Target: RF100 Target, RF60 Target, RF70 Target, RF80 Target, RF80.4 Target, RF90 Target
Rekord: Rekord 50E, Rekord 60, Rekord 60E, Rekord 70, Rekord 70E, Rekord 75.4, Rekord 75.4E, Rekord 80.4E
Rekord COM3: Rekord 65, Rekord 75
Sprint: 654-55, 664-65, 674-75, 684-85



Landini:

500: 9500
Large: 10000, 12500, 13000, 14500



Massey Ferguson:

100: 168, 188
1000: 1014, 1114, 1134
200: 261, 275, 285, 298
2600: 2620, 2625, 2640, 2645, 2680, 2685
2700: 2720, 2725
300: 350, 355, 360, 362, 365, 375, 390, 390T, 398, 399
4200: 4215, 4220, 4225, 4225HV, 4235, 4235,4235HV, 4235HV, 4240, 4245, 4245HV, 4255, 4255HV, 4265
4300: 4315, 4320, 4325, 4325HV, 4335, 4335HV, 4345, 4345HV, 4355, 4355HV
500: 575, 590, 592, 595, 595MKII
600: 698, 698T, 699



Same:

Antares: 100, 110
Argon: 55 Classic, 55F, 65F, 70 Classic, 70F, 75F
Argon3: 3.65, 3.75, 3.75P, 3.80
Centurion: 75 Export, 75 Special
Commando: 393, 503, 603
Condor: Condor 55
Corsaro: Corsaro 70 Synchro
Dorado: 100F, 55, 55F, 56, 56 Classic, 65, 66, 66 Classic, 70F, 75, 75F, 76, 76 Classic, 85, 86, 86 Classic, 90F
Dorado 3: 100 Hi-Line, 60, 60 Classic, 70, 70 Classic, 80, 80 Classic, 90, 90 Classic
Drago: Drago 120
Explorer: 100, 65, 70, 75, 80, 85, 90, 95
Explorer II Special: 75SP II, 85SP II, 95SP II
Explorer Special: 60SP, 75SP, 85SP, 95SP
Explorer T/TB: 75T, 75TB, 85T, 85TB, 95T, 95TB
Explorer T/TB COM 3: 100T, 100TB, 105T, 85T, 85TB, 90T
Explorer3: 100, 100 Classic, 85, 85 Classic
Explorer3 COM3: 100, 105, 110, 85, 90, 90 Natural
Frutteto: 75
Frutteto II: 100 II, 55 II, 60 II, 70 II, 75 II, 85 II, 90 II
Frutteto3: 100, 100 Classic, 110, 60 Classic, 70 Classic, 80, 80 Classic, 80.4 Classic, 90, 90 Classic
Jaguar: 100 Export, 95 Export
Laser: 100, 110
Mercury: Mercury 85 Export
Minitaurus: 60
Panther: 95
Roller: 55, 70
Silver: 105, 110, 85, 95
Silver3: 100, 100 Continuo, 110, 110 Continuo
Solar: 60
Tiger: 50E, 60, 60E, 70, 70E, 75.4, 75.4E, 80.4, Six 105 Export
Tiger COM3: Tiger 50 Tier3, Tiger 65, Tiger 75
Virtus: 100, 100 Infinity, 110, 110 Infinity, 120, 120 Infinity



Steyr:

600: 658
700: 768(A)
8000: 8070(A), 8080(A) Turbo, 8085A/S/AS Turbo



Valmet / Valtra:

1100: 1100, 1102
500: 505
600: 605
6000: 6200, 6300, 6400
700: 700, 702, 702S, 703, 705
800: 802, 803, 805
900: 900, 903
